1 MW industrial rooftop in Ahmedabad

The client and the challenge

An industrial unit in Ahmedabad with high daytime consumption wanted to cut its energy cost without disturbing production. Its roofs were metal sheds of different ages, and work had to fit around running shifts.

Our approach

• Structural assessment of every shed before design, with reinforcement where needed.
• Rail-less, non-penetrating mounting suited to metal sheets, to protect the roof's waterproofing.
• String and inverter layout split by shed, so sections could be commissioned one by one.

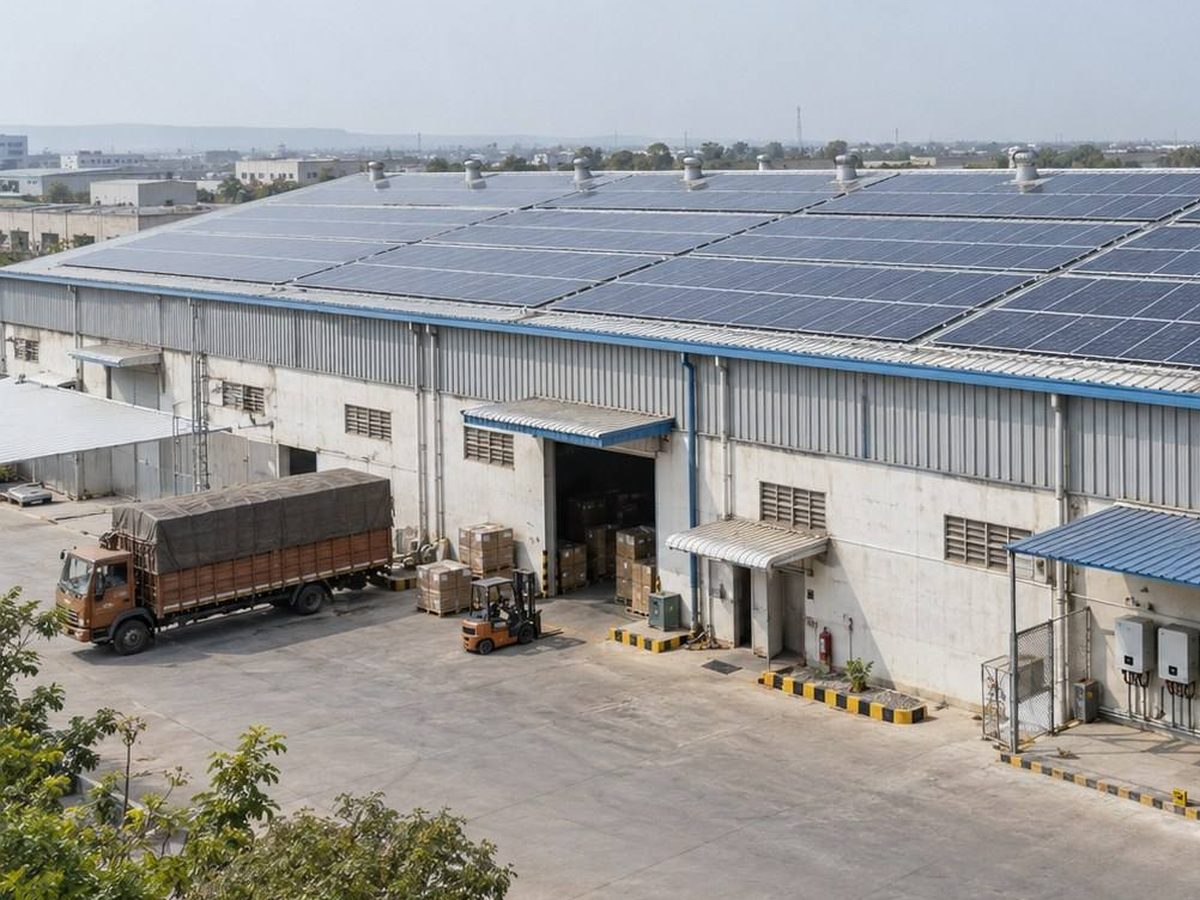

• Walkways and lifelines installed for safe cleaning and maintenance.
• Work planned around shift timings with a dedicated safety supervisor on site.

The result

The plant now supplies a large share of the factory's daytime energy, with remote monitoring for the maintenance team. At 120 units per kW per month, a 1 MW plant generates around 14.4 lakh units a year.

Timeline

1. Survey and audit

   Roofs, load and bills studied.

2. Engineering

   Layout, SLD and structural design approved.

3. Installation

   Shed-by-shed installation with live safety checks.

4. Commissioning

   Testing, DISCOM formalities and handover.
